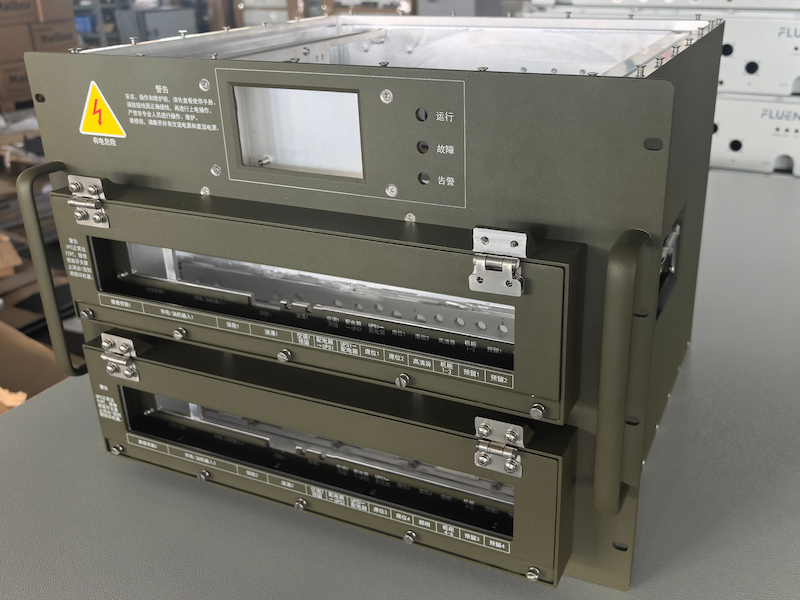

This Integrated Power Distribution Unit for Vehicle-Mounted Shelters features a standard rack-mount design and provides dual-channel, redundant, uninterruptible AC power to internal equipment—such as communication systems, operator consoles, displays, air conditioning, and lighting. It is engineered to withstand harsh vehicular operating conditions—including field mobility, vibration, temperature extremes, and hot-humid environments—and complies with electromagnetic compatibility (EMC) standards.
Item No :
CNC-0001Order(MOQ) :
1Payment :
50% T/T in advance, Balance paid again when finishing production and before shipmentProduct Origin :
XiamenColor :
RAL、PANTONE、GSB05···Custom colorsShipping Port :
Xiamen Port,ChinaLead Time :
20-30daysWeight :
As per product's size and thickness and materials.The vehicle-mounted mobile cabin integrated power distribution unit (integrated vehicle-mounted power distribution system) is specially designed for the mobile operation scenarios of vehicle-mounted mobile cabins. It integrates AC and DC power distribution, intelligent monitoring, multiple protections, and seismic reinforcement, meeting the harsh working conditions such as vehicle-mounted mobile command, emergency communication, special operations, and field support.
The enclosure can be manufactured from 6-series aluminum alloys (6061, 6063, 6060, 6082) or 7-series high-strength aluminum (7075-T6/T651, 7050, 7079), offering high hardness, rigidity, and corrosion resistance while meeting electromagnetic compatibility (EMC) standards.
Surface finishes can be tailored to specific anti-corrosion requirements, including C3 or C5 grade powder coating or natural anodizing; custom screen printing is also available.

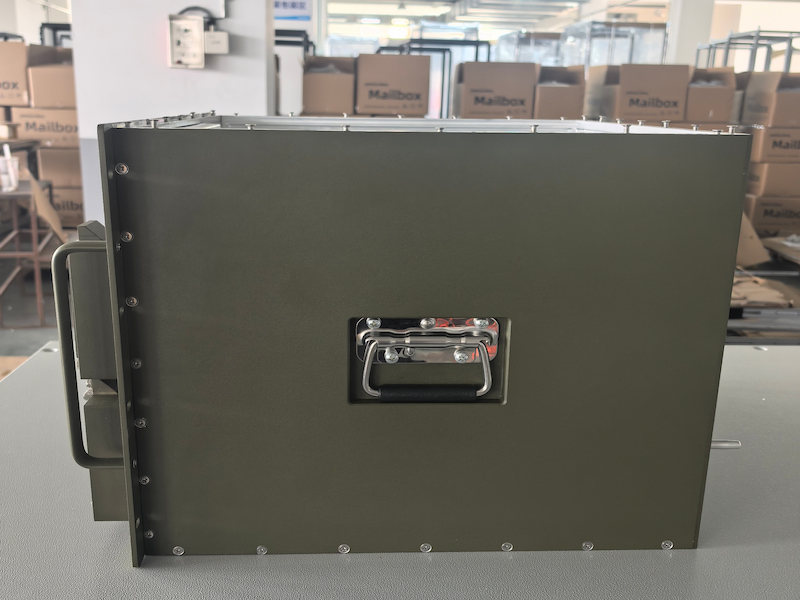

The enclosure features carrying handles on both sides and a hinged-cover circuit breaker compartment; the internal structure allows for the design of custom mounting points and specialized geometries to accommodate specific circuit schematics and electrical components.
Integrates AC/DC power distribution, surge protection, intelligent monitoring and control in one unit, saving shelter space and simplifying wiring.
The integrated design integrates mains power input, generator input, UPS/battery connection, AC/DC conversion, branch output, lightning surge protection and intelligent control into one, reducing the wiring inside the cabin and improving the space utilization rate.
Reinforced structure, anti-loose fasteners and aviation connectors ensure stable operation under severe vibration and bumpy conditions.
The vehicle-grade shock-resistant and vibration-resistant fully reinforced chassis, anti-loosening firmware, and aviation plug connection can meet the strong vibration environments such as vehicle jolts, sudden stops, and steering, ensuring long-term stability without power loss or loosening.
Operating temperature -40℃ to +70℃, protection grade IP54, dust-proof, splash-proof, salt spray-resistant, and mold-resistant, suitable for harsh environments such as outdoor, high-altitude, and coastal areas.
Over-voltage, under-voltage, over-current, short-circuit, leakage, surge and reverse connection protection with audible and visual alarm.
Comprehensive safety protection features overvoltage, undervoltage, overcurrent, short circuit, overload, leakage, surge, reverse connection, and over-temperature protection. It can quickly cut off faults and issue audible and visual alarms to ensure the safety of the load and personnel.
Real-time display of voltage, current, power and fault status; support RS485/CAN/Ethernet remote control.
Real-time collection of voltage, current, power, temperature, and fault status. Supports remote control of branch on-off, parameter configuration, and historical record query via RS485/CAN/ Ethernet.
Support mains, generator and battery input, automatic/manual switching to ensure uninterrupted power supply.
Seamless multi-power switching supports dual/triple input from mains power, generator and backup battery, as well as automatic/manual switching, ensuring uninterrupted power supply to critical loads.
Plug-and-play modules, clear labeling and quick replacement, reducing on-site maintenance cost.
The modular and easy-to-maintain plug-in structure enables rapid fault location and replacement, supports on-site quick repair, and reduces operation and maintenance costs.
Meet vehicle and military EMC standards, no interference to communication and precision equipment.
The electromagnetic compatibility (EMC) standards are up to standard, meeting both automotive and military EMC standards. It has strong anti-interference capabilities and does not affect precision equipment such as communication, radar, and measurement and control systems inside the cabin.
| Item | Parameter |
|---|---|
| Input Configuration | AC 220V ±20% 50Hz; DC 12V/24V/48V (optional); automatic dual-input switching |
| Output Configuration | AC 220V × 4–16 channels; DC 24V × 4–12 channels (customizable) |
| Rated Power | AC: 5kW/10kW/15kW; DC: 1kW–5kW |
| Single-Channel / Per-Channel Current | AC: 10A/16A/32A; DC: 5A/10A/20A/30A |
| Working / Operating Temperature | -40°C to +70°C |
| Protection Rating / Grade | IP54 (front panel) |
| Vibration/Shock Resistance | Compliant with vehicle-mounted GJB/ISO standards |
| Communication Interfaces | RS485, CAN, Ethernet (optional) |
| Display & Control | LCD touchscreen / LED indicators; local push-buttons + remote control |
| Efficiency | ≥90% |
| Dimensions | Standard 4U/3U rack-mount (customizable) |
| Mounting Method | Cabinet mount / Wall mount / Compartment base mount |

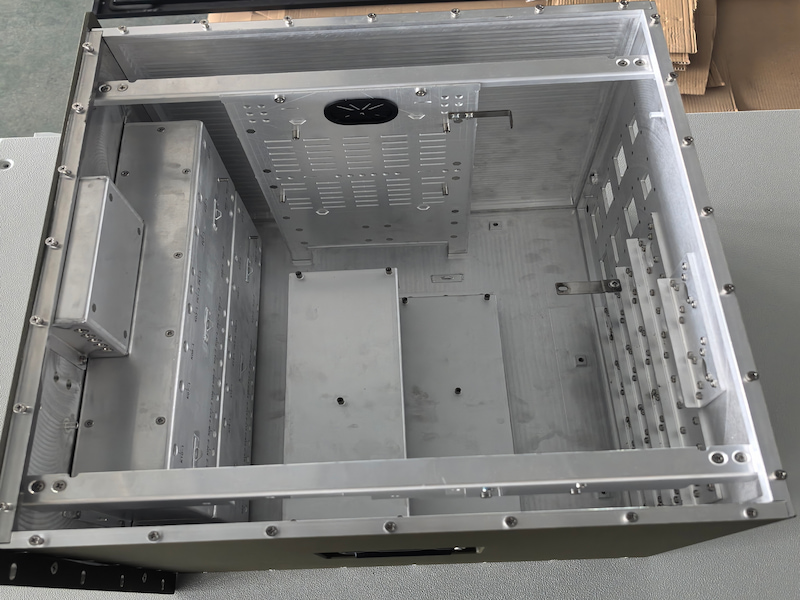

Reinforced aluminum-magnesium alloy chassis offering excellent heat dissipation, lightweight construction, and high strength; features impact-resistant corners and a compact design suitable for confined vehicle spaces. All-aluminum alloy structure, lightweight, high strength, good heat dissipation, anti-collision design.

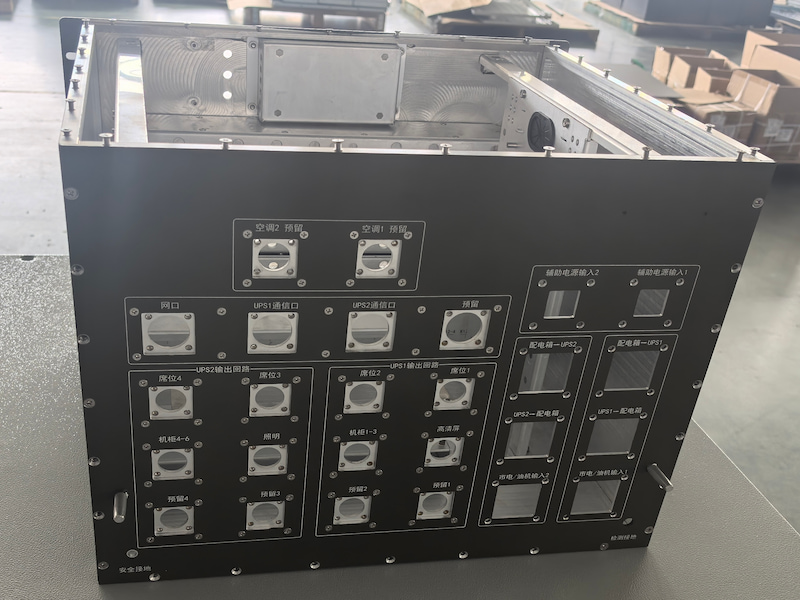

Input/Output ports utilize waterproof aviation connectors designed to prevent incorrect insertion and loosening while ensuring durability through repeated mating cycles; internal copper busbars ensure low power loss and minimal heat generation.
Waterproof Aviation Connectors,High-reliability, anti-loose, waterproof and dust-proof, stable connection under vehicle-mounted environment.

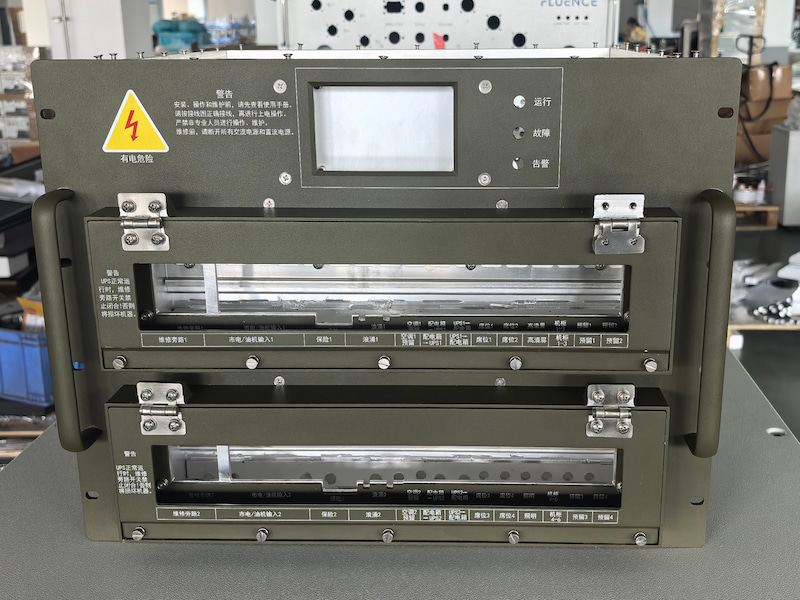

The front panel integrates the master switch, individual circuit buttons, an LCD screen, LED status indicators, an alarm buzzer, and an emergency stop button for intuitive operation.
Clear Front Panel,Integrated main switch, circuit breakers, LCD display, LED indicators, emergency stop and alarm buzzer.
Equipped with built-in surge protective devices (SPD), circuit breakers, fuses, and residual current devices (RCD) to provide tiered protection and rapid response.
Supports natural cooling or forced-air cooling (optional); features temperature-controlled fan speeds for quiet, low-noise operation, ensuring reliability during prolonged full-load performance.
Natural cooling or fan cooling, temperature-controlled, low noise, long-term full-load operation.
Neat internal wiring, clear terminal labels, easy installation, inspection and expansion.
Organized internal wiring with clearly marked wire numbers and terminals facilitates installation, maintenance, and system expansion.
Power supply for equipment inside command vehicles, communication vehicles, intelligence vehicles, and network vehicles.
Command vehicles, communication vehicles, intelligence vehicles.Power distribution for emergency power supply vehicles, medical cabins, rescue vehicles, and field operation platforms.
Emergency power vehicles, field medical shelters.Inspection vehicles, monitoring vehicles, engineering vehicles, radio and television broadcasting vehicles, mobile workstations.
Engineering vehicles, broadcast vehicles.Field cabins, border defense duty vehicles, mobile command centers, equipment support vehicles, field shelters, border patrol vehicles.
Integrated power distribution for mobile scenarios such as exploration, scientific research, construction, and drills.
Survey, scientific research, construction, military exercises.
